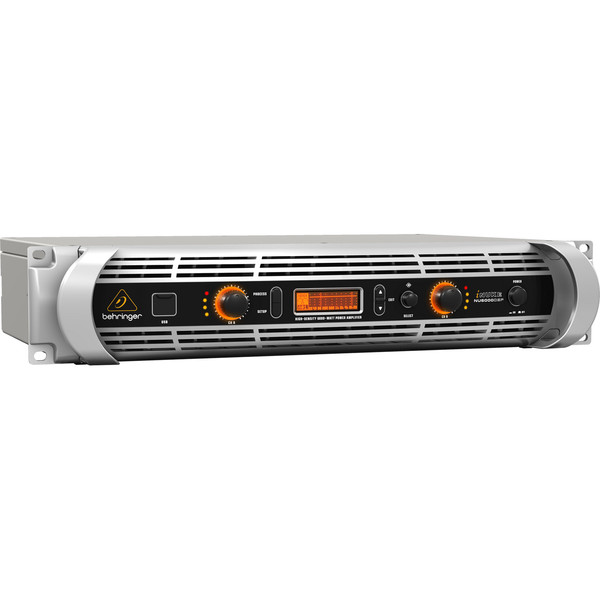

Behringer iNUKE NU6000DSP Power Amp

Full Description

Class-D Amplification Technology

The iNUKE NU6000DSP features a whole array of professional components designed to offer the highest quality audio and performance possible. The Class-D amplifier technology incorporated into this amp was developed to deliver exceptional sonic performance whilst not being a drain on resources and power. Eliminating the need for heavy power supply and big heat sinks, the Class-D amplifier provides optimal audio quality while using less energy and protecting components.

Easy-To-Use Design And Exceptional Functionality

Monitoring is made easy with the NU6000DSP, with the front pane controls and indicators implemented to show the vital system information at a glance. All channels have positive-detent Gain controls with Signal LEDs for added versatility over your functions and volume levels. Also featured are Clip LEDs, signifying when the signal is distorted so you can reduce the appropriate input signal to deliver a clear and high quality sound. The rear panel features XLR and 1/4'' TRS input connectors for exceptional connectivity options, letting you connect to virtually any source. Twist-lock speaker sockets also ensure that connections are held in place, providing increased stability, making sure you get every bit of power translates to your loudspeakers.

USB Connection

One of the most unique features of the NU6000DSP is the USB connection capabilities. You can control and monitor your unit using your computer via the USB connection, giving you expanded control options. The iNUKE Remote Connect Software (available from the Behringer website) is the ideal solution to managing installed system, presets and more.

iNUKE DSP

The built-in DSP and 24-bit/86 kHZ converters deliver the best possible signal integrity with a broad dynamic range. There are also a range of functions provided with the built-in DSP including: delay, crossover, EQ (8 parametric, 2 dynamic) and dynamics processing. The front panel LCD conveniently displays all the information you need to make adjustments to your amplifier without the need for a computer.

Features

• Delivers 2 x 3100 Watts into 4 Ohms, 2 x 1600 Watts into 8 Ohms and weighs less than 12 lbs / 5.5 kg
• Ultimate reliability through revolutionary cool-running High-Density Class-D technology with "near-zero" thermal buildup
• Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
• High-performance DSP and 24-bit/96 kHz converters deliver ultimate signal integrity and extreme dynamic range
• DSP section features sophisticated delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings
• Front panel LCD display enables setup and adjustment without PC
• Can be set up, controlled and monitored via front panel USB connector. Powerful remote software downloadable at behringer.com
• "Zero-Attack" limiters offer maximum output level with reliable overload protection
• Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
• Detented and illuminated gain controls for precise level setting
• Precise 4-segment Signal and Limit LEDs to monitor performance
• XLR and 1/4'' TRS combination input connectors for compatibility with any source
• Professional twist-lock speaker connectors for ultimate reliability
• Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
• “Back-to-front” ventilation system prevents thermal buildup for reliable operation
• High-quality components and exceptionally rugged construction ensure long life

Specifications

• Stereo
  • 8Ω Per Channel: 1600W
  • 4Ω Per Channel: 3100W
• Controls: Power, Gain, DSP Section Rotary Push-Encoder, Buttons For Process, Setup, Up/Down, Exit
• Indicators
  • Power: Amber Backlit Illuminated Gain Controls
  • Limit (Per Channel): 0 dB, Full Scale
  • Signal (Per Channel): -24, -12, -6 dB
• Digital Signal Processing
  • Display: LCD 128 x 32, Amber Backlit
  • Display Delay Function (Per Channel): 0-300 ms
  • Digital Crossover Function: 3 Filter Types, Up To 48 dB/Octave
  • Digital EQ Function (Per Channel): 8-Band Parametric, 2-Band Dynamic Equaliser
  • Digital Dynamics Function (Per Channel): Zero Attack Limiter (Peak)
  • Presets: 20 Total Presets, 19 User-Definable
• Inputs: 2 x Combo Jacks
• Input Impedance: 10kΩ Unbalanced, 20kΩ Balanced
• Outputs: 2 x Locking-Style Professional Speaker Connectors
• Output Circuit Type: Class D
• Distortion: <0.2 Percent
• Frequency Response: 20Hz - 20kHz, +0 / -2 dB
• Damping Factor: >140 @ 8Ω
• Signal-To-Noise: >98 dB
• USB: Front Panel USB Connector Type B For Remote Control Of DSP Section
• Cooling Protection: Continuously Variable Speed Fan, Back-To-Front Air Flow
• Amplifier Protection: Thermal and DC Protection, Stable Into Reactive Or Mismatched Loads
• Load Protection: On/Off Muting, DC-Fault Power Supply Shutdown
• Power Supply
  • USA/Canada: 120V, 60Hz
  • UK/Australia/Europe: 220-240V, 50/60Hz
  • Korea/China: 220-240V, 50/60Hz
  • Japan: 100V, 50/60Hz
• Power Consumption @ 4Ω: 620W
• Mains Connector: Standard IEC Receptacle
• Weight: 5.4 kg
• Dimensions
  • Height: 89 mm
  • Width: 483 mm
  • Depth: 328 mm
