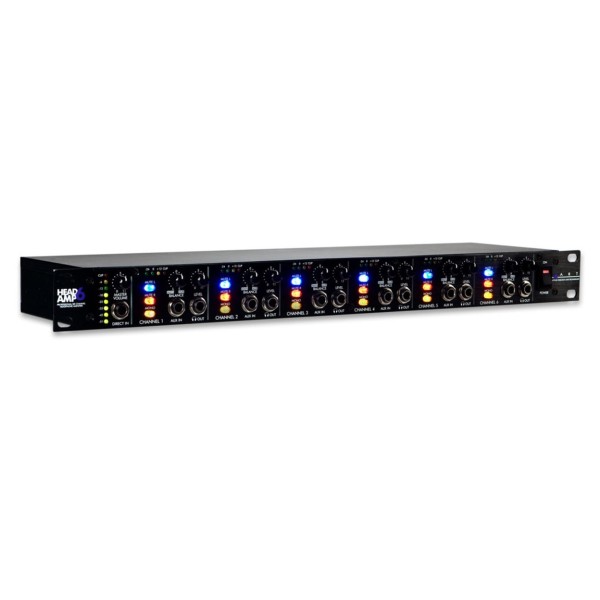

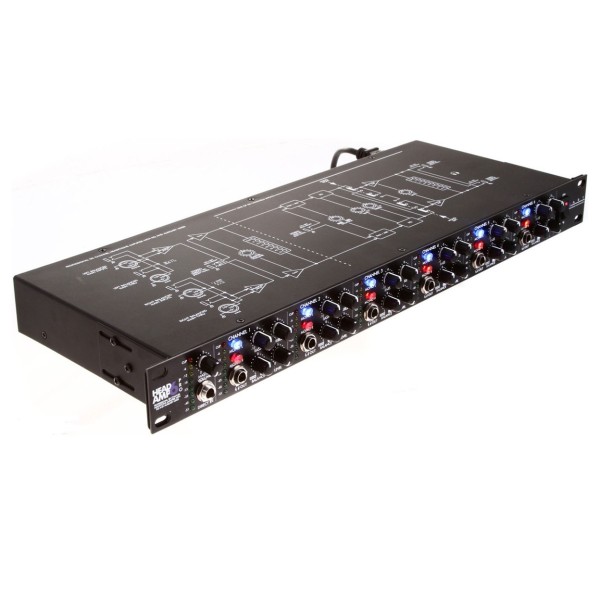

ART Headamp6 Pro Six Channel Stereo Headphone Amplifier - Secondhand

Full Description

The ART Headamp6 Pro offers a dual function Balance Control on each channel which will pan between left and right input of the main signal bus, or vary the mix between the main stereo signal bus and the auxiliary input for that respective channel. Fine-tune the tone with the bass and treble controls on each output channel, and select between four operating modes; 1) Stereo, 2) Mono Left, 3) Mono Right, 4) Mono Both (left & right) with the MONO select buttons on each channel - giving you versatility and ease of use.

Input options include XLR and 1/4-inch TRS balanced inputs with matching "Thru" jacks for bridging multiple units. An additional front panel stereo 1/4-inch TRS Direct In jack for quick patch override of the rear panel inputs is included for quick insertion of any stereo source. Master Volume control sets the main signal bus level. Eight-segment precision LED level metering on the main bus and four-segment indicators on each output channel provide visual feedback of the signal level at all key points.

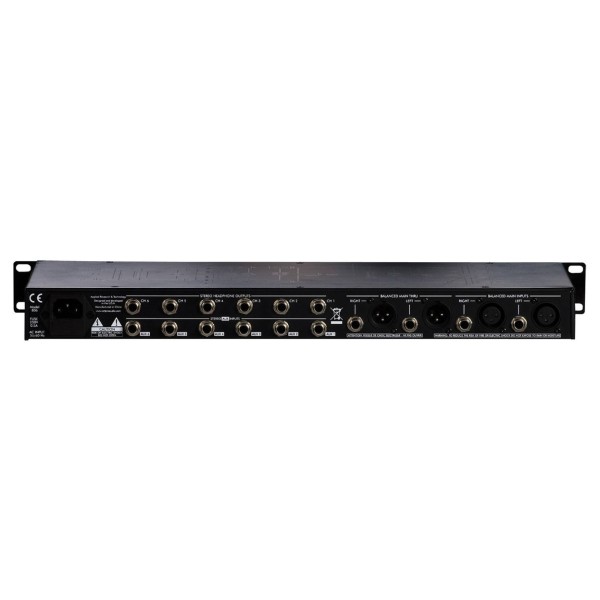

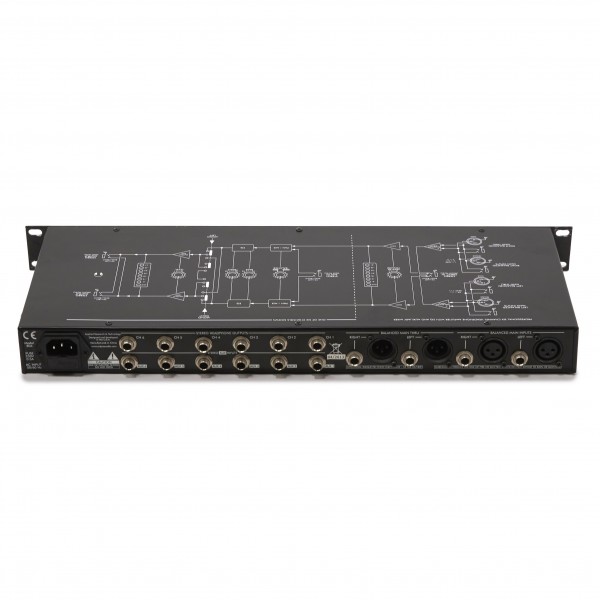

The main outputs for each channel of the headphone amplifier are rear mounted stereo TRS jacks and are wired in parallel with the corresponding output jacks on the front panel. Front panel, rear panel, or both front and rear panel outputs can be used simultaneously to drive headphones or be used as feeds to additional headphone amplifiers in a distributed audio network.

Features

• Six independent high-power amplifier channels
• Bass and treble EQ per channel
• Dual-function pan/mix control per channel
• Stereo aux input for each channel
• Multiple monitoring settings per channel
• Precision 8-segment LED bargraph per channel
• Front panel Main Insert jack
• Front and rear-mounted headphone jacks
• XLR And 1/4" main inputs and outputs
• Parallel main outputs for multiple unit use

Specifications

• Maximum Input Level: +21.5dBu
• Maximum Output Level: 500 mW @ 32ohms
• Frequency Response: 20 Hz - 50 KHz +0, -2dB
• Maximum Gain: 25.6 dB (Tone Controls Set Flat)
• Input Impedance: 40k ohm Balanced
• CMMR: 40dB
• Dimensions: 1.75 x 19 x 7.5 in / 44.5 x 482 x 190mm
• Weight: 6.8 lbs (3.1 kg)
• Power Requirements: 105-125 VAC AC 60 Hz
